Cloudray Marking Control Card JCZ FB/SZLI-B-LV7A For Fiber Laser Marking Machine(With Extension Axis Control)

Model FB/SZLI-B-LV7A

• [Dual-Mode Laser Control] Features DB25 socket for direct pulsed fiber laser connection and supports both fiber/CO2/YAG laser modes via dip-switch selection, with TTL-compatible digital mirror control signals.

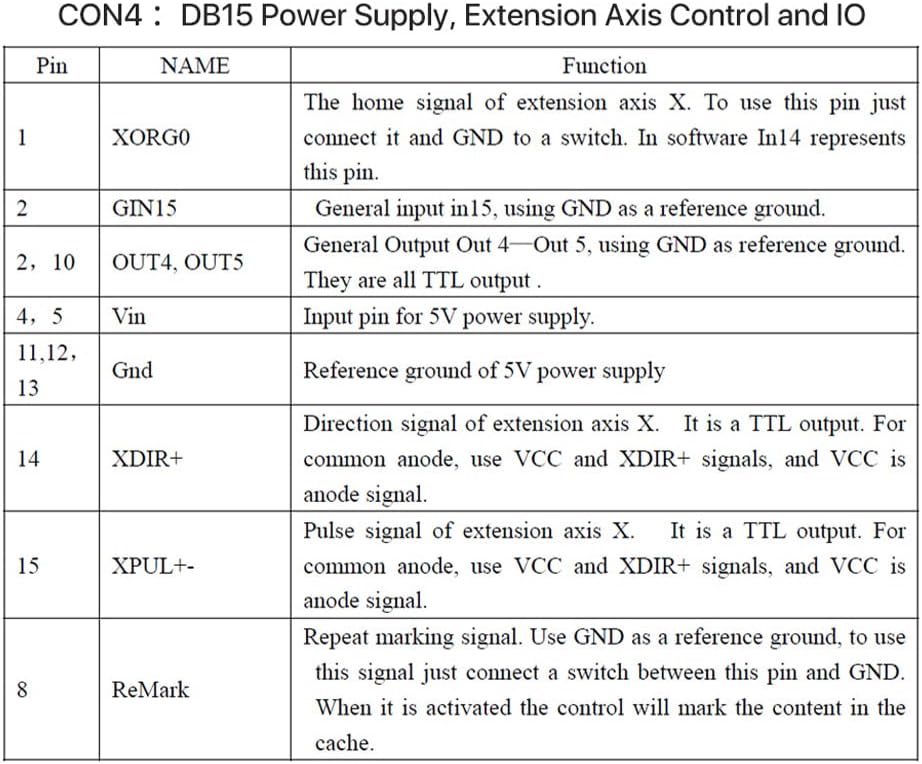

• [Flexible I/O Configuration] Provides 7 universal inputs (IN0-IN3 for laser status + GIN4/14/15) in fiber mode or 4 inputs (IN0+GIN4/14/15) in CO2/YAG mode, plus 2 universal outputs (Out4/Out5) for both modes.
• [High-Speed Marking] START signal enables rapid duplicate content marking (excluding variable text/excessive data), requiring connection to universal input when cache memory is insufficient.
• [Enhanced Connectivity] USB 2.0 compatible for reliable data transfer, with J3 socket (LaserST0-3) for dedicated laser status monitoring in fiber mode.
• 【Model Options】Choose Model A (with extension axis control supports extension axis control for rotary marking applications ) or Model B (standard version) without extension axis capability.
